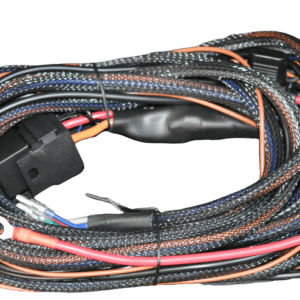

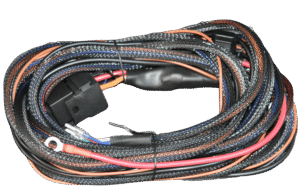

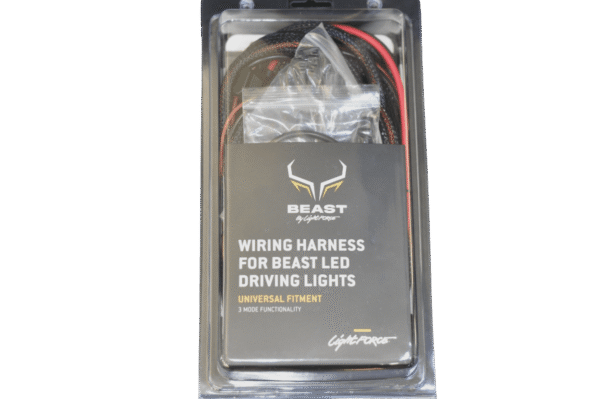

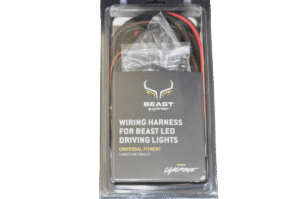

Beast Driving Light Universal Wiring Harness

Beast Driving Light Universal Wiring Harness -12V. This harness is specifically designed for the installation of BEAST’s 3-mode operation.

The harness kit comes complete with HB3 and H4 headlight adaptors for simple integration into your vehicle’s headlight circuit. Additional terminals are included for different configurations.

Positive or negative switching is controlled electronically, output to the switch is always positive so no changing of the wiring or guess work is required. Simply connect, true plug-and-play.

A very small (8mm in diameter) single moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall and connects directly to the BEAST 3-mode smart switch.

SPECIFICATIONS:
12V operation
40 Amp relay
Positive or negative switching (controlled electronically).

Wiring Harness Layout:

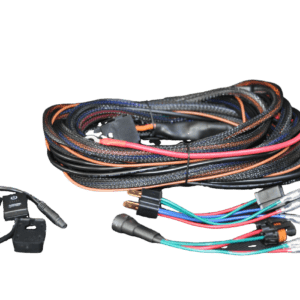

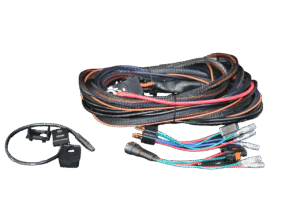

KIT INCLUSIONS:
1 x 12V BEAST Driving Light Universal Harness including relay
1 x BEAST Driving Light 3-Mode Rocker Switch (Universal dash mount & TY2 fitment compatible)
1 x HB3 Headlight Patch Harness
1 x H4 Headlight Patch Harness
Extra terminals, cable ties and mounting hardware
1 x user instructions.
